Worn seals are one of the more common household plumbing issues and replacing one is something most homeowners can manage without calling anyone, as long as they take their time and follow the process properly.
What the Outlet Valve Seal Actually Does
At the bottom of the cistern sits the outlet valve. Every flush opens it and water moves down into the bowl. When the toilet is not in use, the valve closes and the seal holds everything back. Simple enough when it is working. When the seal wears out, warps, or gets something caught against it, water finds its way through into the bowl without a flush happening. That is the trickling sound. It just keeps going until the seal is dealt with.
How Much Water a Running Cistern Actually Wastes
Before putting this one off until next weekend, it is worth knowing what a running cistern is actually costing. The Australian Bureau of Statistics has flagged household water use as an ongoing concern across Australian cities and a cistern that runs continuously can get through tens of thousands of litres over the course of a year. That is not a small number and it all shows up on the bill.
Not sure the outlet valve seal is actually the problem or not confident doing it yourself? Ezy-Plumb diagnoses and fixes cistern issues across Brighton without any fuss. Get in touch today.
What You Will Need Before You Start
Get everything together before the lid comes off. Stopping halfway through because something is missing is the kind of frustration that is entirely avoidable.
- A replacement outlet valve seal that matches the existing valve. Take the old one to the hardware store or look up the cistern brand and model beforehand. Getting the wrong size means another trip.
- An adjustable spanner or pliers
- Something to deal with the water left in the cistern. A sponge and bucket works. Old towels do the job too.
- A few minutes to read through the full process before the lid comes off.
Replacement seals are at most hardware stores and do not cost much. In most cases the seal is all that needs replacing. If the valve body comes out looking cracked or corroded, the whole assembly needs to go, not just the seal.
Step One: Turn the Water Off
Turn the water off at the supply before anything else gets touched. Find the isolating valve behind or to the side of the toilet. It will usually be on the wall or the floor. Turn it clockwise until it stops. If it has seized or there is not one there, the mains need to go off.
Once the water is off flush the toilet. Most of the cistern drains out with it. What is left at the bottom gets soaked up with a sponge. Get it dry before moving on to anything else.
Step Two: Remove the Cistern Lid
Take the lid off carefully and put it somewhere safe. They are heavier than most people expect and porcelain chips easily on a hard floor. Set it down somewhere it is not going to get nudged or knocked.
With the lid off, take a look at what is inside before touching anything. The outlet valve is at the bottom centre of the cistern with the flush mechanism above it. Have a look at how everything connects before removing anything, and take a photo on your phone. It’s a small thing you can do that can save a lot of head-scratching when putting it all back together.
Step Three: Disconnect the Flush Mechanism
The flush mechanism sits on top of the outlet valve and needs to come away before the valve can be accessed. Most cisterns use either a retaining collar that unclips or a locking nut that unscrews by hand. Which one depends on the brand and model. Either way, take it slowly. Plastic in older cisterns becomes brittle over time and one cracked piece turns a quick seal job into something nobody wanted to deal with that afternoon.
Ezy-Plumb handles cistern repairs across Brighton and the surrounding area. Book a time and get it sorted properly.

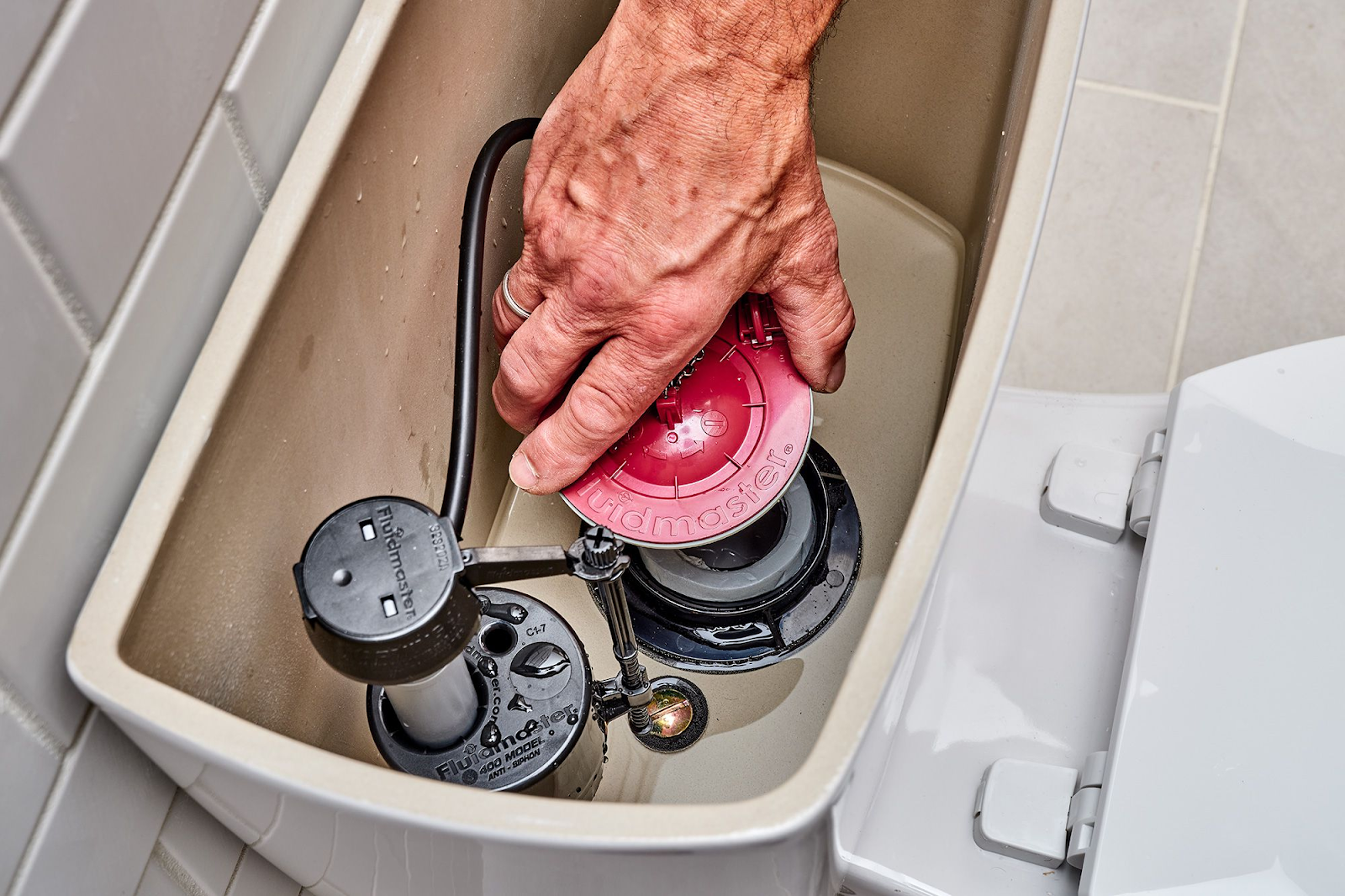

Step Four: Remove the Outlet Valve
With the flush mechanism disconnected, the outlet valve can be lifted out of the cistern. In most Australian toilets, it simply lifts straight up once any retaining clips or locking nuts have been undone. Some models have a twist-lock mechanism that requires a quarter turn before the valve lifts free.
Once the valve is out, have a look at the base for the seal. Worn ones are usually pretty obvious. Sometimes though they look fine but make sure to look carefully for any bubbling. Also check for any grit or mineral buildup caught against it. A tiny bit of either is enough to stop it from sitting properly.
Step Five: Replace the Seal
Pull the old seal off the valve. It usually just peels away or unclips depending on the design. Before the new seal goes on, have a look at the valve seat. Scale and mineral buildup collect there over time, and a seal pressed against that surface is not going to hold no matter how new it is. Wipe it down with a cloth. It takes thirty seconds and makes the difference between a repair that works and one that does not.
Put the seal on. Place it in the same spot the old one sat. Run a finger around the edge once it is fitted. It should be flat all the way around with nothing raised or sitting off to one side. That is what you are after. Rushing this part is how people end up with a toilet that is still running after a brand new seal.
The Environment Protection Authority Victoria has made the point clearly enough - running toilets waste water and fixing them is just part of running a responsible household. Tens of thousands of litres saved from one repair. Worth the hour.
Step Six: Reassemble and Test
With the new seal in, reverse the whole process. Valve back in the cistern, flush mechanism back on, clips and locking nuts where they came from. Not sure about something - that is what the photo is for.
Turn the water back on slowly and watch. Cistern fills, valve visible, nothing trickling into the bowl. Once it is full, flush and watch the refill.
Still running? The valve seat is the next thing to look at. Mineral scale or a crack on that surface stops a new seal from sitting properly. If that is what is going on, the whole assembly needs to come out.
When to Stop and Call a Plumber
DIY cistern repairs are manageable for most homeowners when the problem is a worn seal and the valve body is in good condition. There are situations where it makes more sense to call a licensed plumber.
The Victorian Building Authority is clear about what plumbing work in Victoria requires a licence. Doing that work without one can create compliance issues and void insurance. It is worth checking before going further than a seal replacement.
If the valve body is cracked, cistern leaking from the base or fittings, flush mechanism that is broken rather than just worn. Hand those over to a plumber.
Ezy-Plumb completes cistern repairs across Brighton. Licensed, reliable, no fuss. Call today: 0402 169 096
FAQs
- How do I know the seal has gone?
A toilet that runs when nobody has touched it is the thing to look for. Lift the lid and check. Water moves into the bowl when nothing has been flushed. That is where to start.
- Can I replace it myself?
Most of the time, yes. Valve damage or a leaking cistern changes the picture. Those need a plumber.
- How long does it take?
Half an hour to an hour for most people. Have the seal ready before starting as that one thing is what keeps it quick.
- Is the toilet still running after the new seal is installed?
Check the valve seat. Mineral scale or a crack on the seat can stop even a brand new seal from holding properly. If that is what is happening the whole valve assembly may need to come out rather than just the seal.
- When should I call a plumber?
Cracked valve body, water coming from the base, flush mechanism that is beyond a simple fix. Those are not DIY repairs. Call a plumber and save yourself the trouble.
